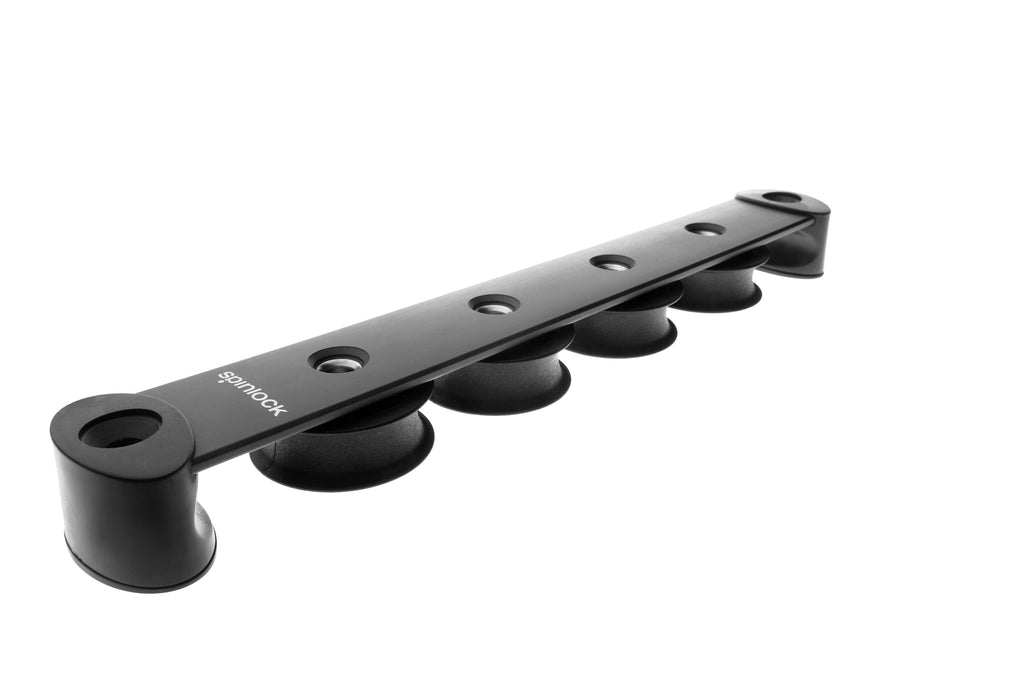

- Minimal overall length
- Efficient bearings surface reduces winch effort and increases halyard life
- Integral end fairings for safe side loading

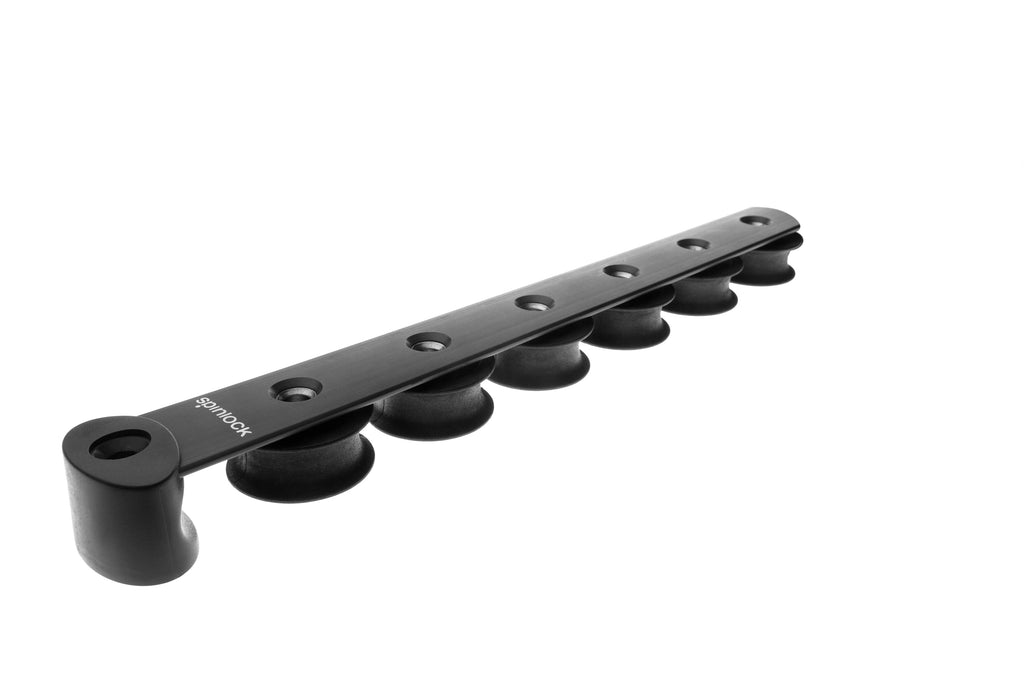

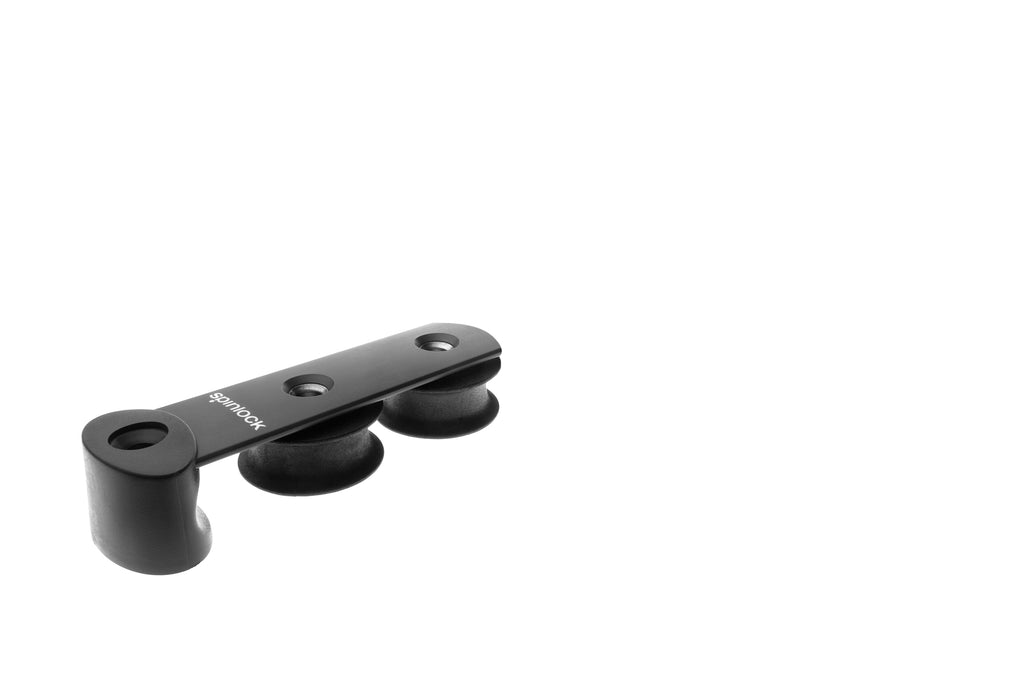

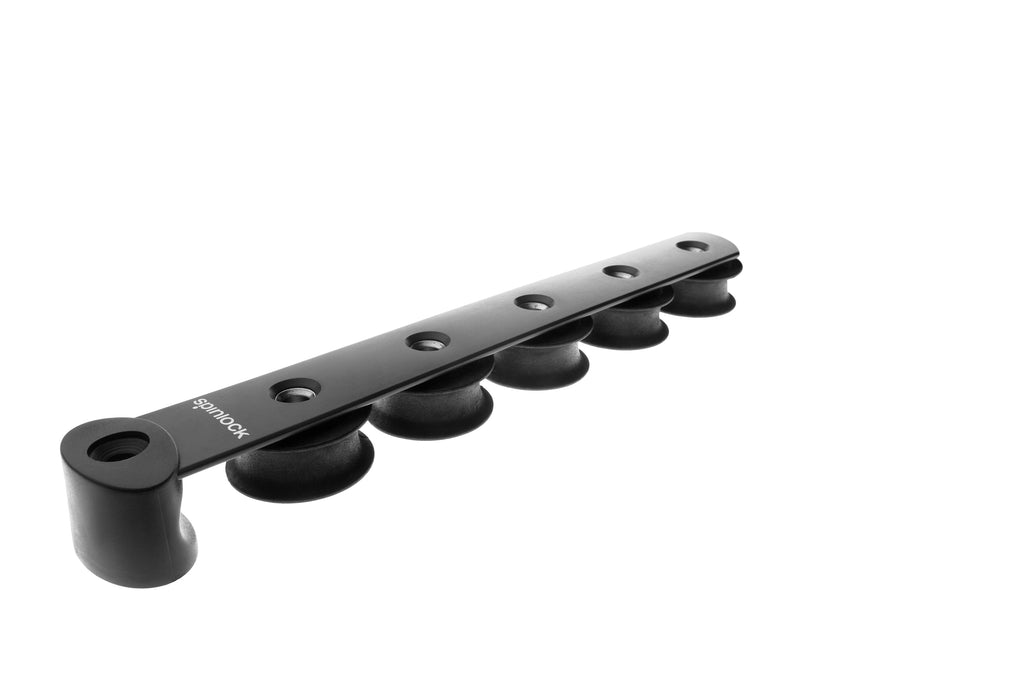

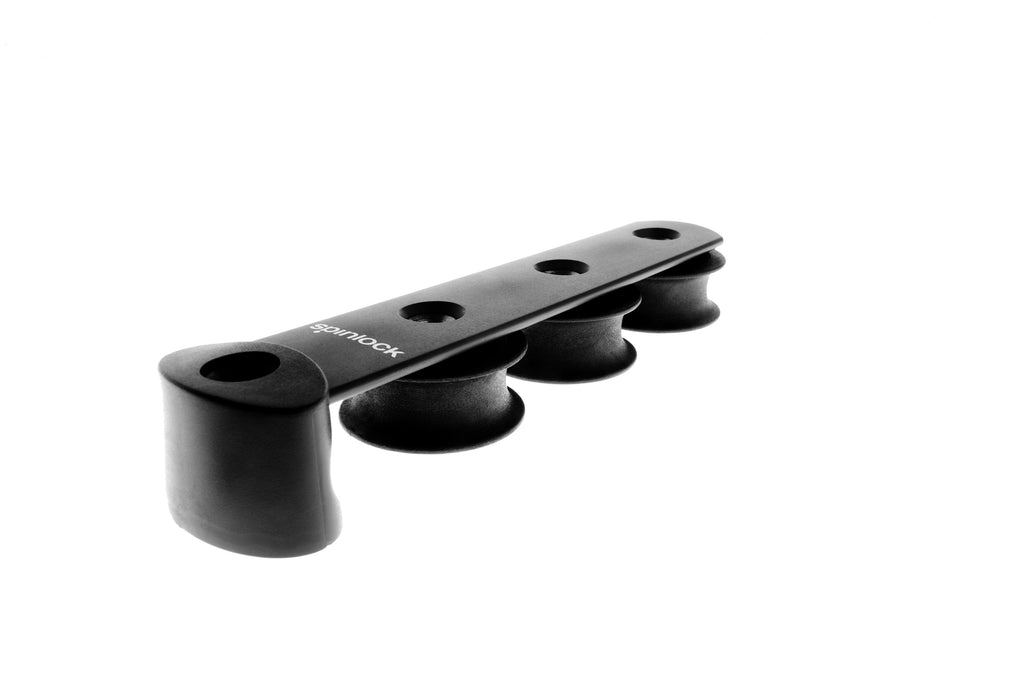

- Asymmetric version reduces deck footprint and saves weight
- Can ‘stack’ for limited deck area or adding extra capacity.

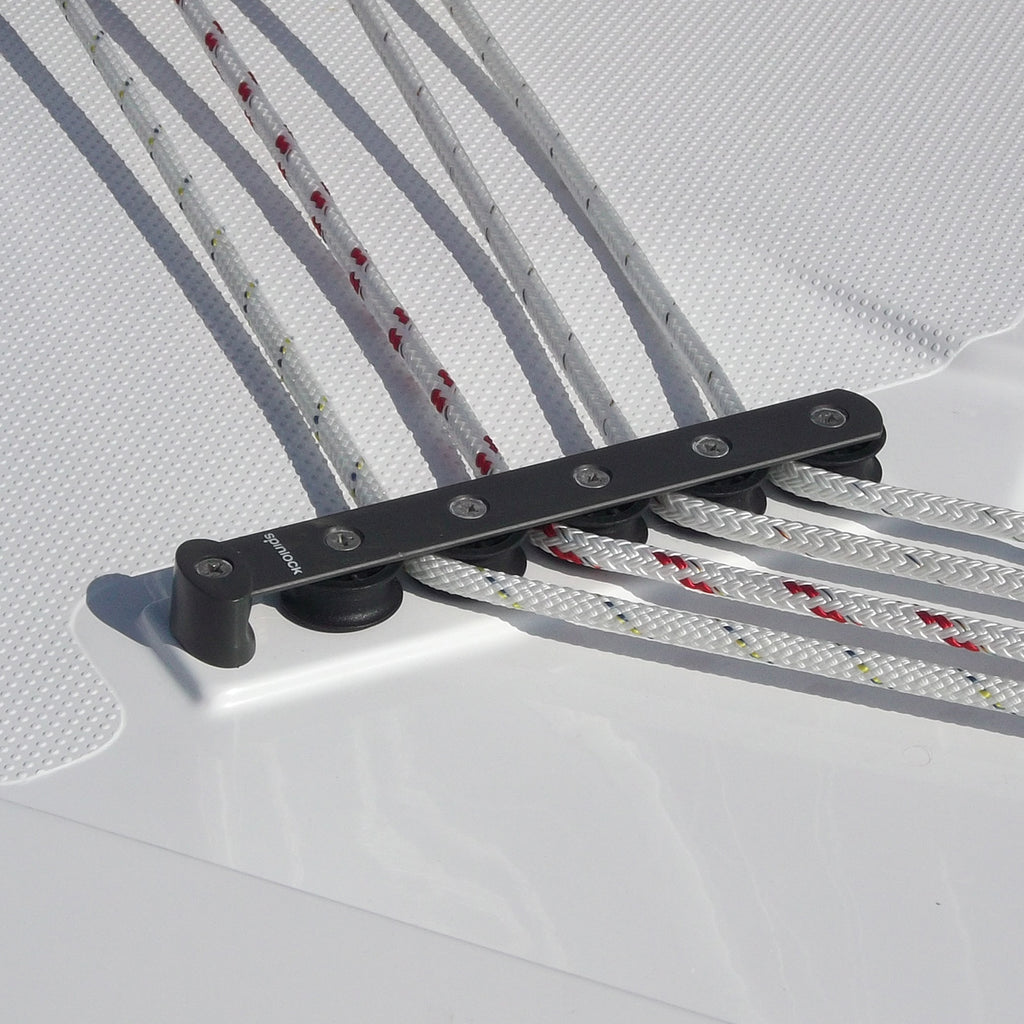

- Vari-camber feature: Designed to follow the curve of the deck when fitted
Sheave Diameter/Type
38mm (1 1/2") composite
SWL per sheave
600kg (1320lbs)
Total SWL per unit
No of sheaves x 300kg (660lbs)
Line Diameter
Up to 12mm (1/2")
Weights

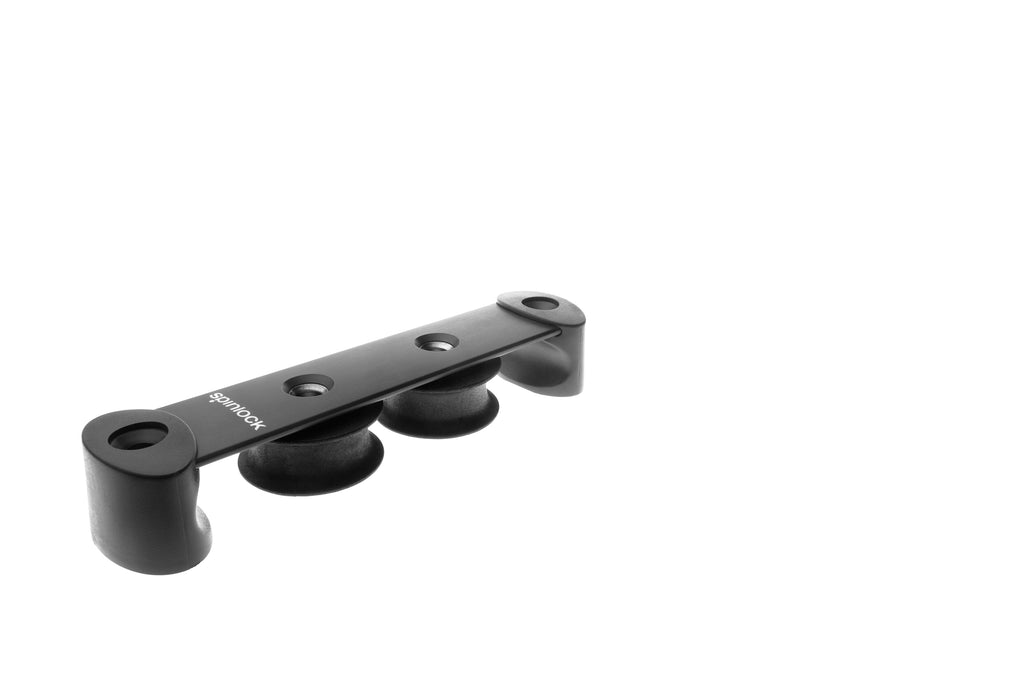

115g (4.0oz) for 2 sheave organiser
30g (1.1oz) per extra sheave
30g (1.1oz) per extra sheave
Fasteners
2 x M6 (1/4") CSK (not supplied)
