- Fibre-reinforced construction
- Stainless steel ‘wear strip’ prevents local rope damage

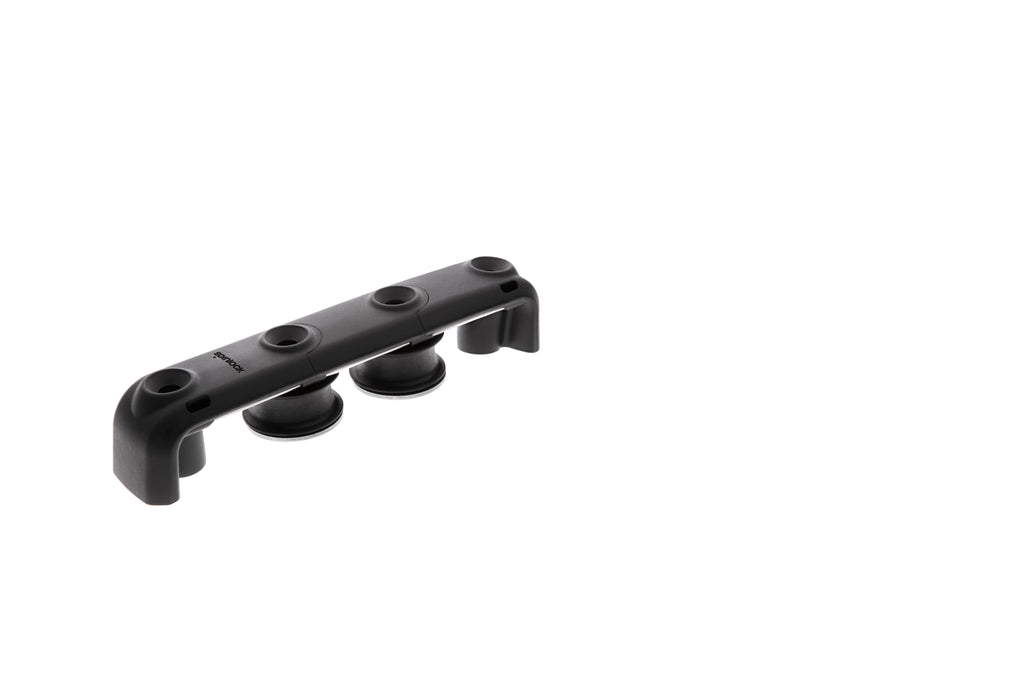

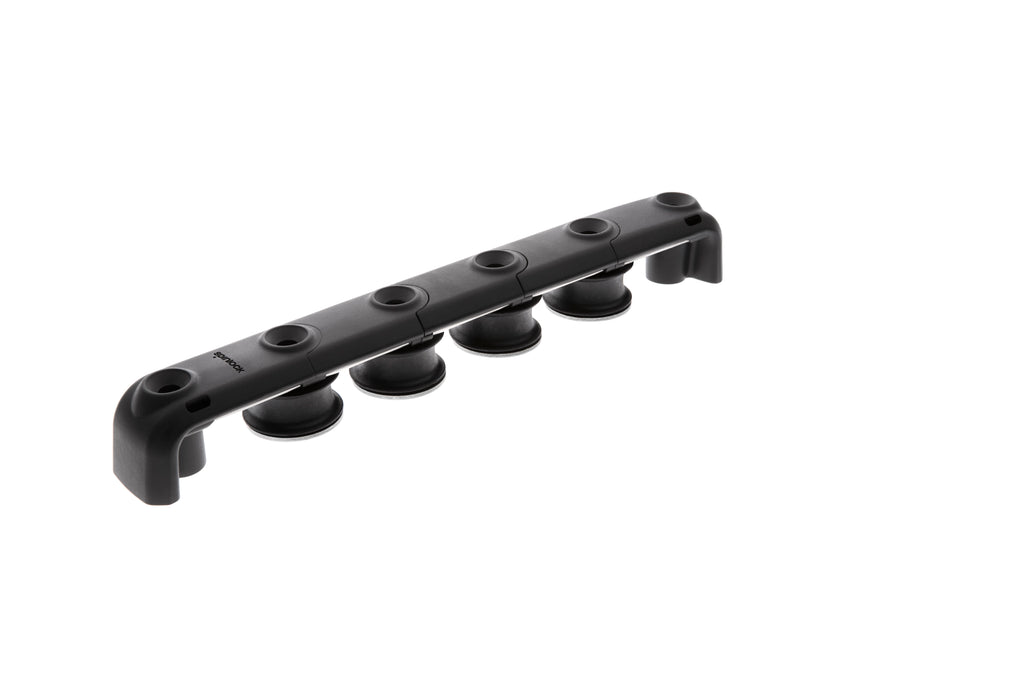

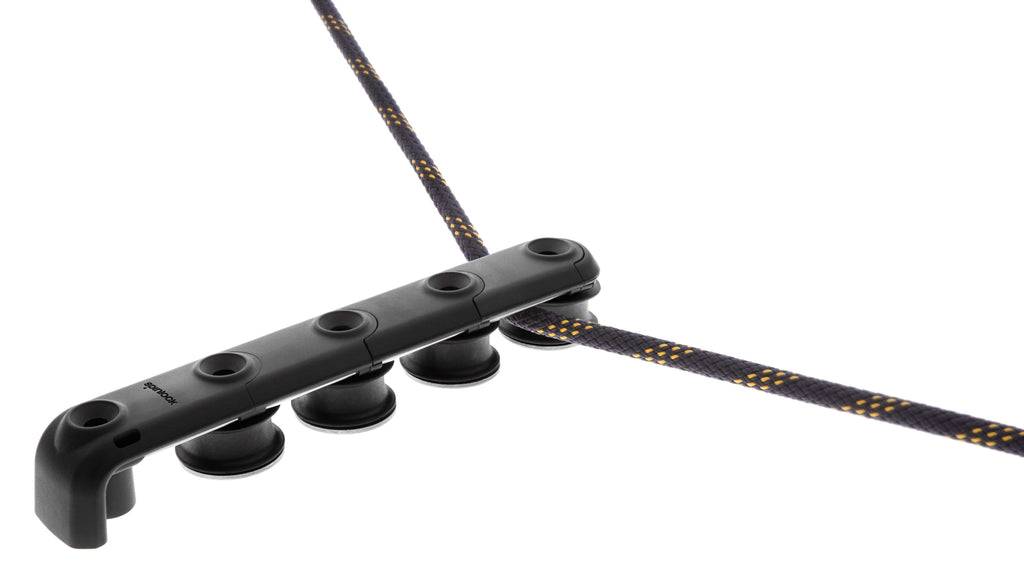

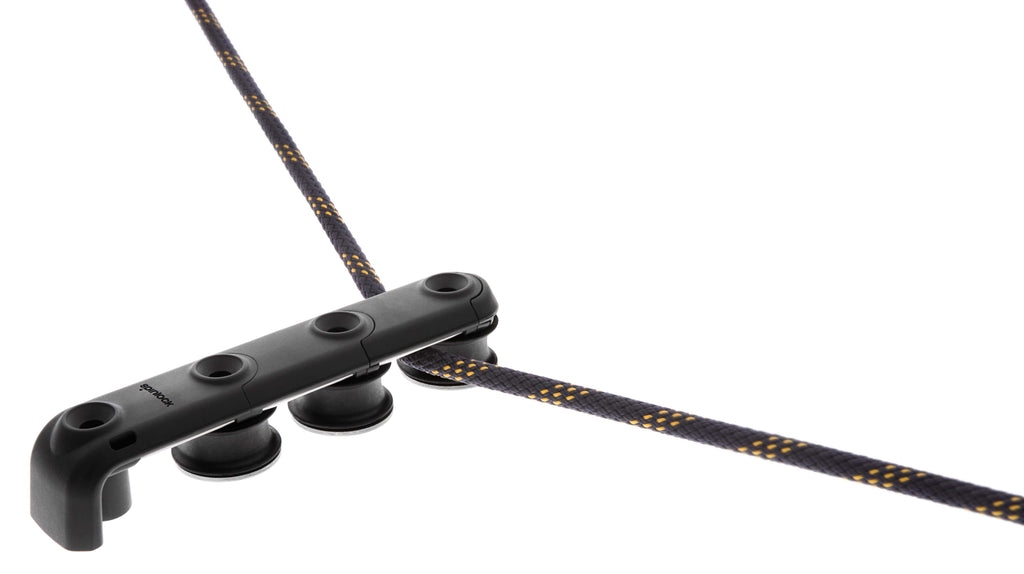

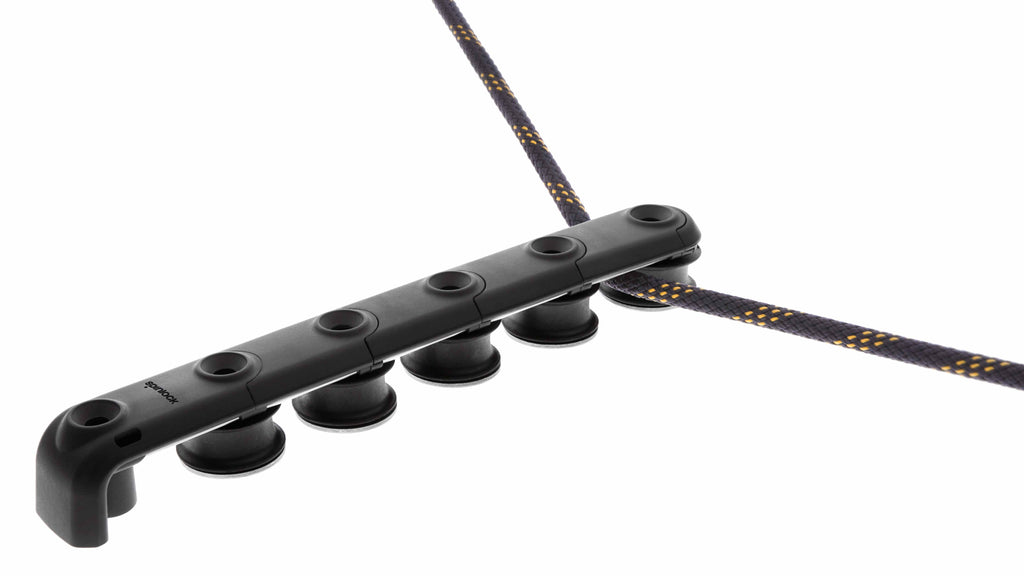

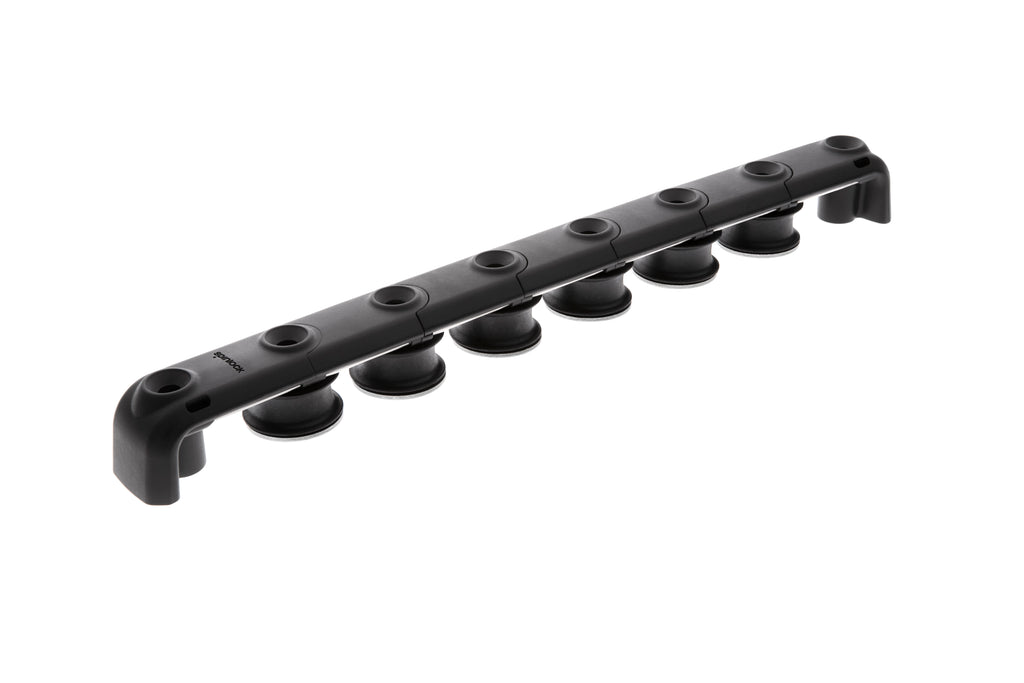

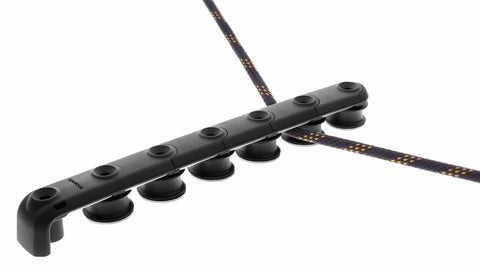

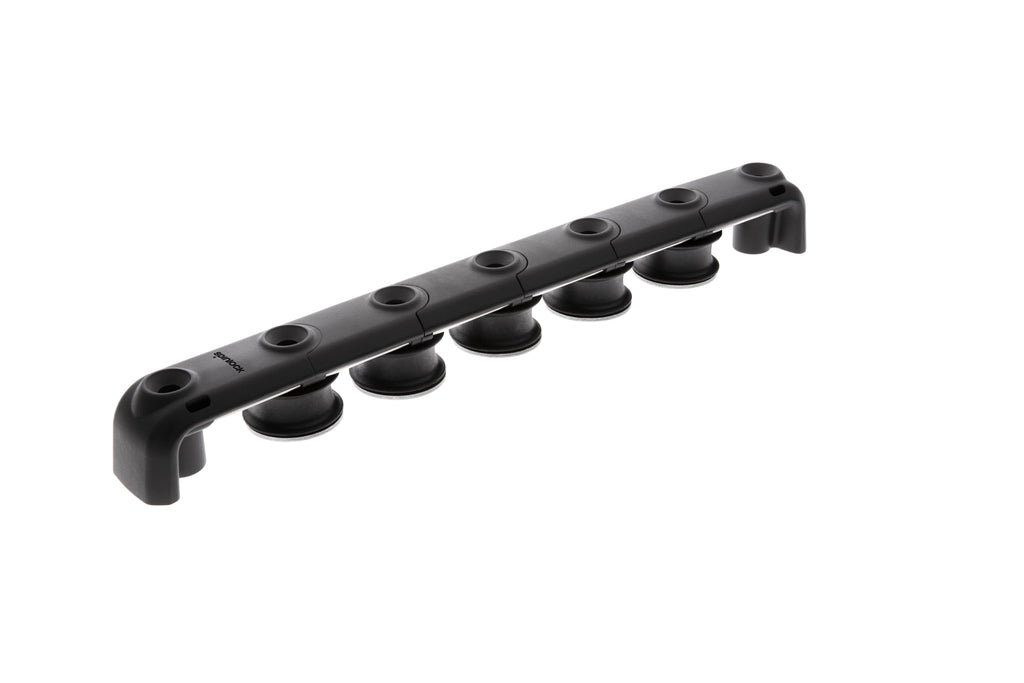

- Symmetric or asymmetric configurations with full range of sheaves (2 to 6 sheaves)
- Stainless steel unlinked base for fitting on curved surfaces which simplifies deck sealing
- Double stack with BE10/2 or /3 for lowest cost stacked line solution

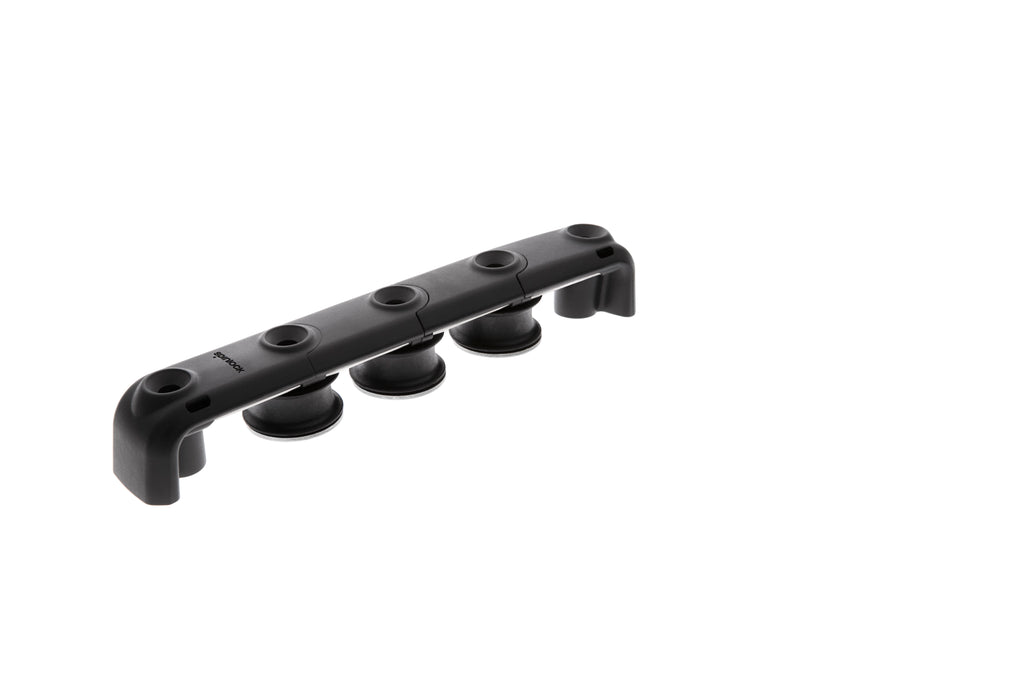

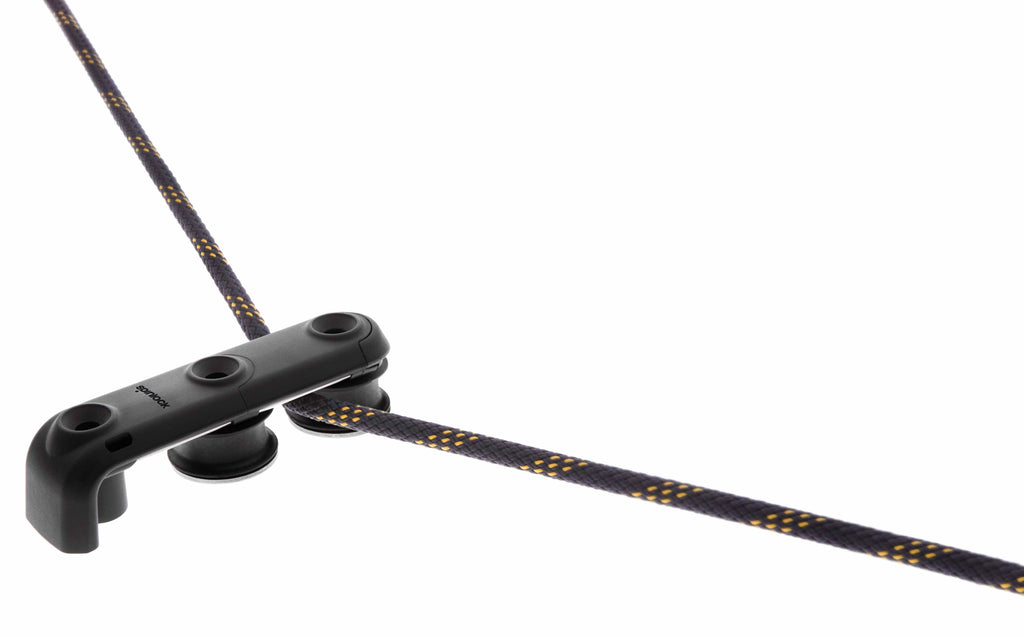

- Small boat organiser - 25mm sheaves
- Curves to follow the shape of the deck
Sheave Diameter/Type
25mm (1") composite
SWL per Sheave
400kg (880lbs)
Total SWL per unit
No of sheaves x 200kg (440lbs)
Line Diameter
Up to 10mm (3/8")
Weight
64g (2.2oz) for 2 sheave organiser
20g (0.7oz) per extra sheave
20g (0.7oz) per extra sheave
Fasteners
2x M5 (3/16") CSK Head (not supplied)
